Description

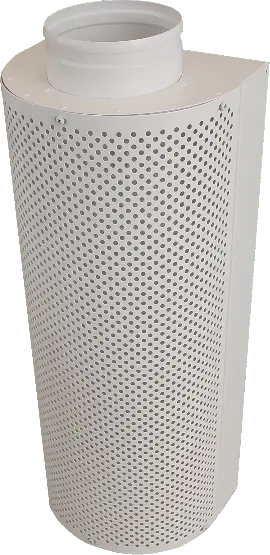

The air displacement diffuser supplies a large amount of air at low velocity and is intended for ventilating large areas, auditoriums and industrial halls. Its filters assure clean air and evenly distribute the air throughout the area without draughts.
Construction
- perforated front panel
- casing
- round connection opening
- perforated internal dispersion plates
Accessories and options
- filter on the circumference
- volume control damper
- rectangular connection opening
- flanges on rectangular connection opening
- 3-way air inlet on rectangular units
- decorative extendable cover
Material and finish
Material options:
- galvanized sheet metal
- stainless steel sheet metal
Any colour from the RAL palette.
Construction
- 1 - perforated external casing
- 2 - dispersion plate
- 3 - connection opening
- 4 - filter on the circumference
- 5 - decorative cover
- 6 - damper
Dimensions and types
Rectangular with rectangular spigot
| D | D1 | A x B | H |
|---|---|---|---|
| 400 | 300-350 | 100-200x80-250 | 300 - 2500 |
| 600 | 350-550 | 150-400x100-450 | 300 - 2500 |
| 800 | 400-700 | 200-600x100-600 | 300 - 2500 |
| 1000 | 500-800 | 250-800x100-700 | 300 - 2500 |
| 1500 | 600-900 | 350-1300x250-800 | 300 - 2500 |
| 2000 | 600-900 | 500-1800x250-800 | 300 - 2500 |
Rectangular with round spigot
| D | D1 | Ø D | H |
|---|---|---|---|
| 400 | 260-300 | 158-198 | 300 - 2500 |
| 600 | 260-415 | 158-313 | 300 - 2500 |
| 800 | 260-500 | 158-398 | 300 - 2500 |
| 1000 | 300-600 | 198-498 | 300 - 2500 |
| 1500 | 350-730 | 248-628 | 300 - 2500 |
| 2000 | 415-900 | 313-798 | 300 - 2500 |
Semicircular
| D | D1 | D2 | Ø D | H |
|---|---|---|---|---|
| 400 | 230-280 | 95-130 | 123-198 | 300 - 2500 |
| 600 | 330-530 | 130-230 | 198-398 | 300 - 2500 |
| 800 | 430-655 | 155-280 | 248-498 | 300 - 2500 |
| 1000 | 530-815 | 205-345 | 348-628 | 300 - 2500 |
| 1500 | 780-815 | 205-345 | 348-628 | 300 - 2500 |
| 2000 | 1030 | 205-345 | 348-628 | 300 - 2500 |
Round
| D | øD | H |
|---|---|---|
| 200 | 123-158 | 300 - 2500 |
| 300 | 158-248 | 300 - 2500 |
| 400 | 158-313 | 300 - 2500 |
| 500 | 198-398 | 300 - 2500 |
| 600 | 198-498 | 300 - 2500 |
| 700 | 248-628 | 300 - 2500 |
| 800 | 248-628 | 300 - 2500 |
Corner
| D | D1 | Ø D | H |
|---|---|---|---|
| 400 | 150 | 123-198 | 300 - 2500 |
| 600 | 250 | 198-398 | 300 - 2500 |
| 800 | 350 | 248-628 | 300 - 2500 |
| 1000 | 450 | 313-708 | 300 - 2500 |
| 1200 | 550 | 313-708 | 300 - 2500 |
| 1500 | 700 | 348-708 | 300 - 2500 |
| 2000 | 950 | 348-708 | 300 - 2500 |
Selecting the size of the circular connection
Selecting the size of the circular connection: the maximum flow rate at the selected connection ØD is calculated with a maximum velocity in the connection of V=6 m/s. The recommended optimum velocity at the selected connection is 3-4 m/s. The recommended optimum velocity at the frontal perforation is 0.8-1.5 m/s, the maximum velocity at the frontal perforation is 2 m/s.
| D (mm) | Q max (m³/h) | Q optimal (m³/h) |
|---|---|---|
| 200 | 680 | 396 |
| 300 | 1530 | 891 |
| 400 | 2710 | 1581 |
| 500 | 4250 | 2475 |
| 600 | 6110 | 3560 |
| 700 | 8300 | 4834 |
| 800 | 10860 | 6324 |
